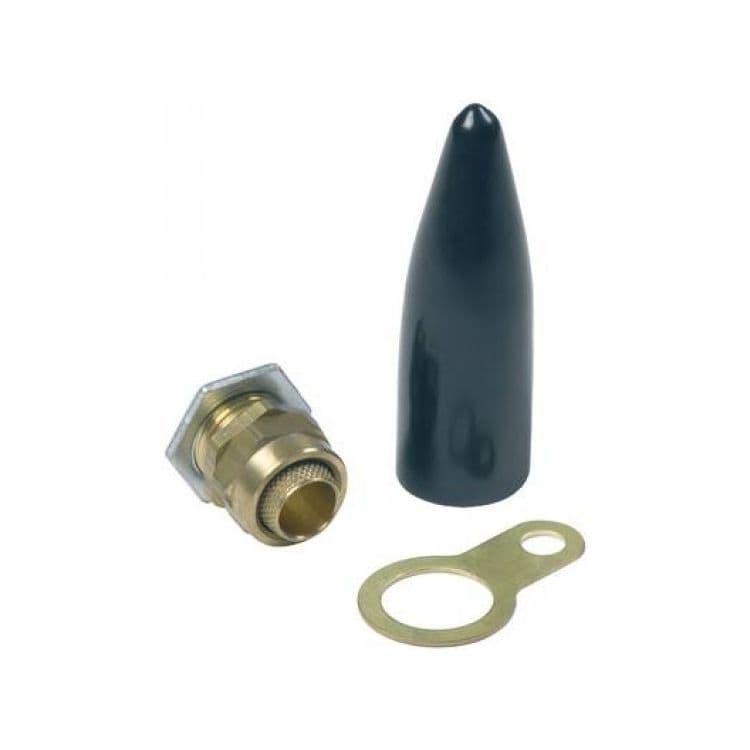

Wiska CW40 Armoured Cable Outdoor Gland Pack

Material Brass

Material shrouds PVC

Packing unit 1

Temp. range min -20 °C

Temp. range max 80 °C

Protection class IP66

Thread type M

Ø Connection thread D 40

Lead 1,5

Length screw-in thread L 15 mm

Ø cable diameter min 33 mm

Ø cable diameter max 39,5 mm

Ø cable below cable shield max -32,1 mm

Key width SW 51 mm

Collar diameter (E) 59 mm

Total length TL 67 mm

Type CW 40L
