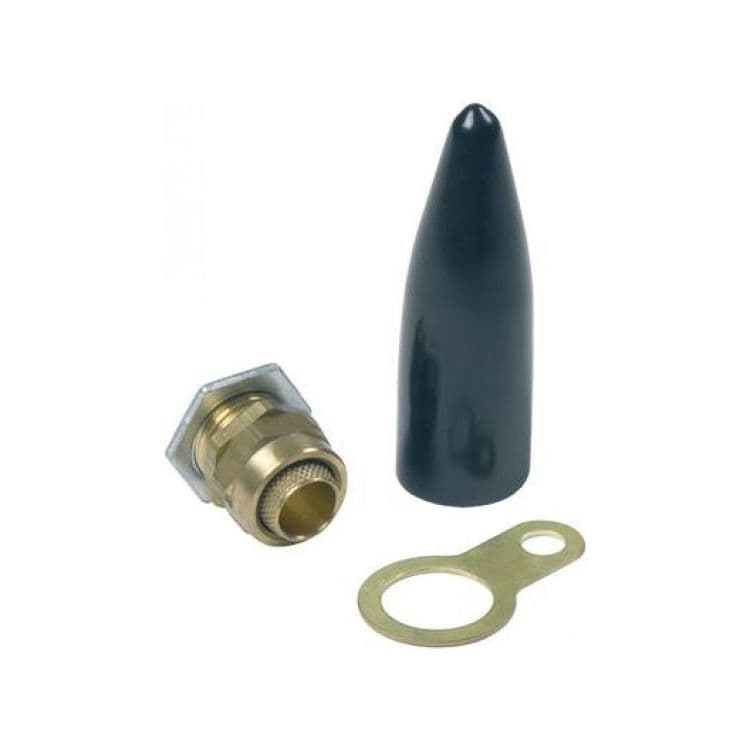

Wiska CW32 Armoured Cable Outdoor Gland Pack

Material Brass

Material shrouds PVC

Packing unit 2

Temp. range min -20 °C

Temp. range max 80 °C

Protection class IP66

Thread type M

Ø Connection thread D 32

Lead 1,5

Length screw-in thread L 10 mm

Ø cable diameter min 26 mm

Ø cable diameter max 33,5 mm

Ø cable below cable shield max -26,5 mm

Key width SW 43 mm

Collar diameter (E) 50 mm

Total length TL 58 mm

Type CW 32L
