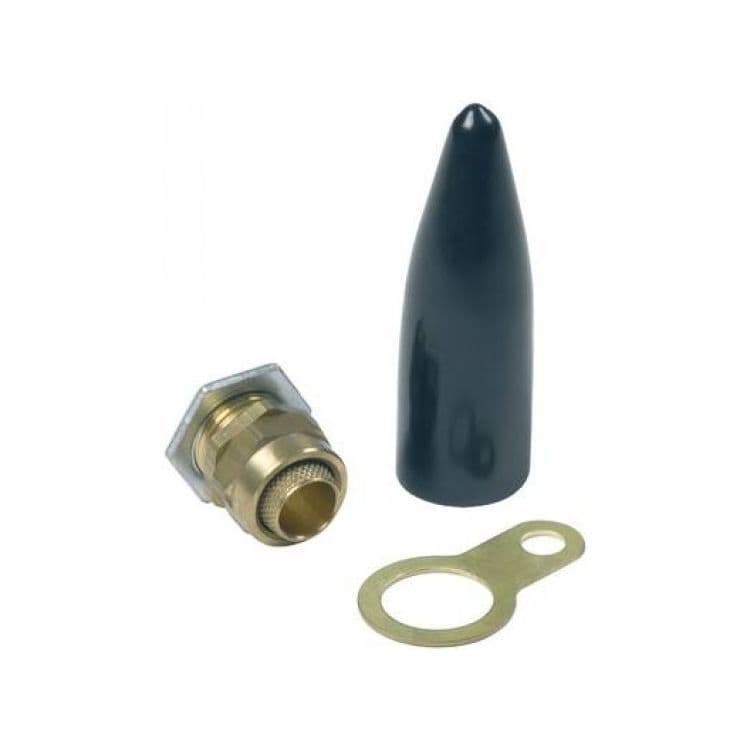

Wiska CW25 CW 25mm Non-LSF Outdoor Cable Gland Pack for SWA

Material Brass

Material shrouds PVC

Packing unit 2

Temp. range min -20 °C

Temp. range max 80 °C

Protection class IP66

Thread type M

Ø Connection thread D 25

Lead 1,5

Length screw-in thread L 10 mm

Ø cable diameter min 22 mm

Ø cable diameter max 26,5 mm

Ø cable below cable shield max -20 mm

Key width SW 35 mm

Collar diameter (E) 39 mm

Total length TL 54 mm

Type CW 25L
