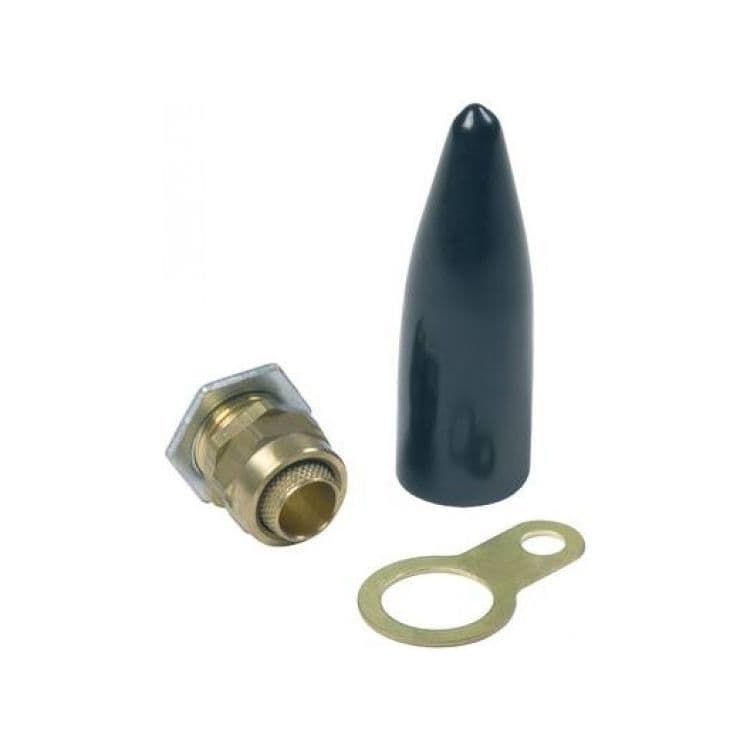

Wiska CW20L 20mm Non-LSF Outdoor Cable Gland Pack for SWA

Material Brass

Material shrouds PVC

Packing unit 2

Temp. range min -20 °C

Temp. range max 80 °C

Protection class IP66

Thread type M

Ø Connection thread D 20

Lead 1,5

Length screw-in thread L 10 mm

Ø cable diameter min 15,5 mm

Ø cable diameter max 19,5 mm

Ø cable below cable shield max -13,6 mm

Key width SW 27 mm

Collar diameter (E) 31 mm

Total length TL 49 mm

Type CW 20L
