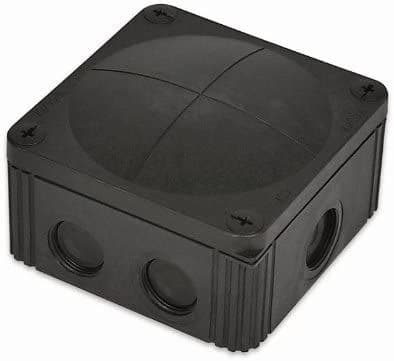

Wiska COMBI 607/5/2xKRM25/20 BK Junction box, polypropylene

Material Polypropylene

Material sealing gasket TPE

Temp. range min -30 °C

Temp. range max 100 °C

Temperatures during install. -5 °C - 60 °C

Protection class IP66 / IP67

Glow wire test 750 °C

Voltage 690 V

Rated current / A (Terminal) 41 A

Rated cross section 5 x 6mm²

Terminals/poles 6 mm²

Fixing 4 internal openings

Ø cable diameter min 5,2 mm

Ø cable diameter max 17 mm

External dimensions LxWxH 110 x 110 x 66 mm

IP66: using the membrane entry

Ø cable: 5,2 - 17 mm

IP67: using the threaded entry together with ESKV cable gland

Ø cable: 9,0 - 17 mm

Mounting:

- 4 internal openings outside of the sealing area

Equipment:

- 7 elastic, self-sealing puncture-membranes for cable entry on the side and 3 on the bottom

- 7 integrated M25 thread for mounting without lock nut

- 4 captive cover screws

- terminal block 5-pole, 6mm²

- 2 reduction adaptors KRM 25/20
