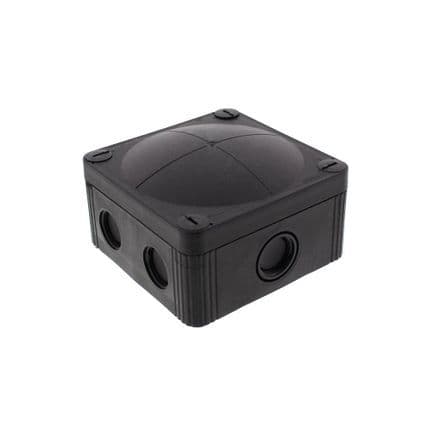

Wiska COMBI 407 BK Junction box, polypropylene

Material Polypropylene

Material sealing gasket TPE

Temp. range min -30 °C

Temp. range max 100 °C

Temperatures during install. -5 °C - 60 °C

Protection class IP66 / IP67

Glow wire test 750 °C

Voltage 690 V

Rated cross section 4 mm²

Fixing 4 internal openings

Ø cable diameter min 3 mm

Ø cable diameter max 12 mm

External dimensions LxWxH 95 x 95 x 60mm

Type of cable gland M 20 x 1,5, M 25 x 1,5

Type COMBI 407 BK

IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland

Equipment:
- 6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
- 2 membrane cable entries through rear
- 4 captive cover screws
- including mounting clip

Fixing:
With mounting clip or 4 internal openings outside of the sealing area
