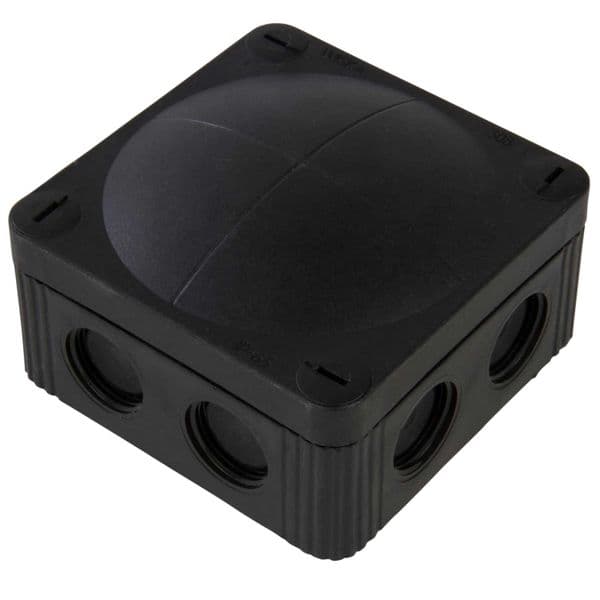

Wiska COMBI 308 BK Junction box, polypropylene
Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
Voltage 400 V
Rated cross section 4 mm²
Fixing 4 internal openings
Ø cable diameter min 3 mm
Ø cable diameter max 12 mm
External dimensions LxWxH 85 x 85 x 51mm
Type of cable gland M 20 x 1,5
Type COMBI 308 BK
Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
Voltage 400 V
Rated cross section 4 mm²
Fixing 4 internal openings
Ø cable diameter min 3 mm
Ø cable diameter max 12 mm
External dimensions LxWxH 85 x 85 x 51mm
Type of cable gland M 20 x 1,5
Using for cable gland Using for cable gland
Product Color RAL 9005
WISKA-Order no. 10060581
Type COMBI 308 BK
Packing unit 5
EAN number 4007685605816
Tariff number 39269097
ETIM-Classification EC002600
Remarks:
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:
- 8 M20 threaded membrane entries
- 4 captive cover screws
- including mounting clip
Fixing:
With mounting clip or 4 internal openings outside of the sealing area
