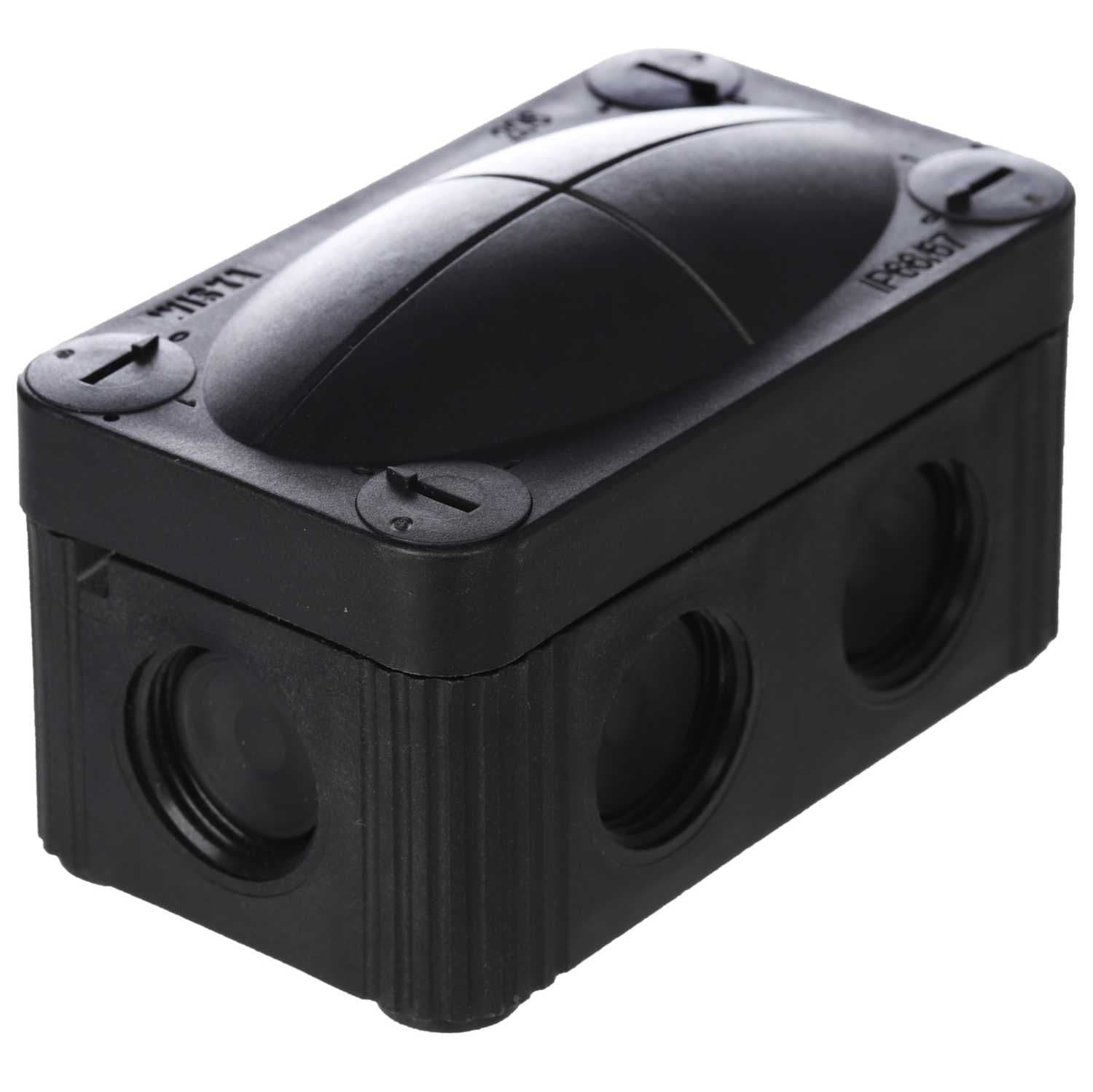

Wiska Combi 206 Junction box 85x49x51mm

Material Polypropylene

Material sealing gasket TPE

Temp. range min -30 °C

Temp. range max 100 °C

Temperatures during install. -5 °C - 60 °C

Protection class IP66 / IP67

Glow wire test 750 °C

Voltage 400 V

Rated cross section 1,5 mm²

Fixing 4 internal openings

Ø cable diameter min 3 mm

Ø cable diameter max 12 mm

External dimensions LxWxH 85 x 49 x 51mm

Using for cable gland Using for cable gland

Type COMBI 206 BK

IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland

Equipment:
- 6 M20 threaded membrane entries
- 2 membrane cable entries through rear
- 4 captive cover screws

Fixing:
With 4 internal openings outside of the sealing area
