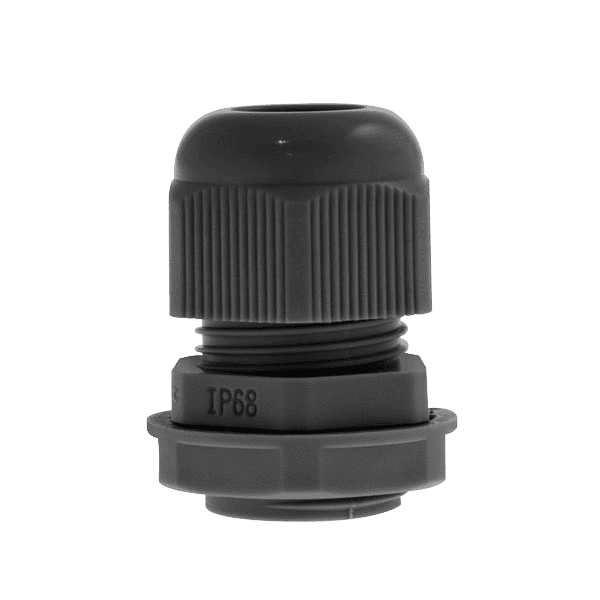

Unicrimp 25MM IP68 GLAND NYLON BLACK 10 Pack
Brand: Unicrimp | Product Code: QCGM25BLK | Weight: 0.23kg |
Contact us for pricing and availability
Dimensions
Spanner Size (mm) 33
Threaded Diameter (mm) 25
Threaded Entry Length (mm) 15.2
General Information
Colour Black
Cable Clamping Range (mm) 13 - 18
Recommended Cap Tightening Torque (Nm) 2.5 - 3.5
Ingress Protection IP68
Temperature Rating (°C) 0 to +80
Materials
Gland Body: Nylon 66
Seal: TPE (Thermoplastic Elastomer)
Washer: PVC (Polyvinyl Chloride)
Standards
ANSI/UL 514B
BS EN 60529: 1992 + A2: 2013
Spanner Size (mm) 33
Threaded Diameter (mm) 25
Threaded Entry Length (mm) 15.2
General Information
Colour Black
Cable Clamping Range (mm) 13 - 18
Recommended Cap Tightening Torque (Nm) 2.5 - 3.5
Ingress Protection IP68
Temperature Rating (°C) 0 to +80
Materials
Gland Body: Nylon 66
Seal: TPE (Thermoplastic Elastomer)
Washer: PVC (Polyvinyl Chloride)
Standards
ANSI/UL 514B
BS EN 60529: 1992 + A2: 2013
