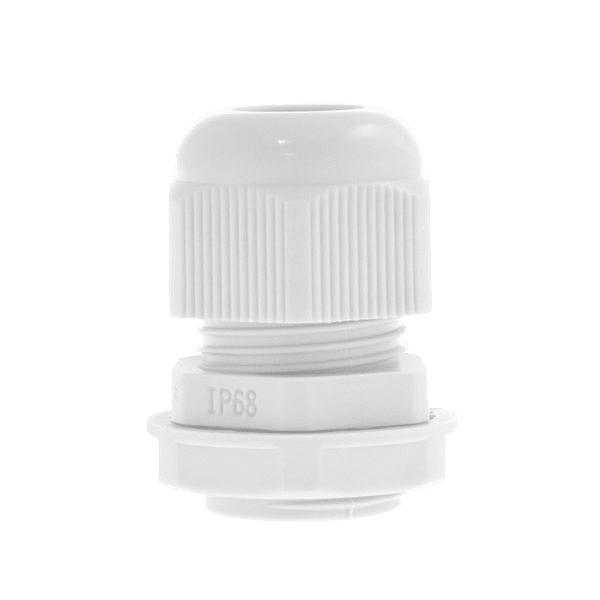

Unicrimp 20MM IP68 GLAND NYLON WHITE 10 pack
Brand: Unicrimp | Product Code: QCGM20LWHT | Weight: 0.15kg |
Contact us for pricing and availability
Dimensions
Spanner Size (mm) 27
Threaded Diameter (mm) 20
Threaded Entry Length (mm) 10
General Information
Colour White
Cable Clamping Range (mm) 10 - 14
Recommended Cap Tightening Torque (Nm) 2.0 - 2.5
Ingress Protection IP68
Temperature Rating (°C) 0 to +80
Materials
Gland Body: Nylon 66
Seal: TPE (Thermoplastic Elastomer)
Washer: PVC (Polyvinyl Chloride)
Standards
ANSI/UL 514B
BS EN 60529: 1992 + A2: 2013
Spanner Size (mm) 27
Threaded Diameter (mm) 20
Threaded Entry Length (mm) 10
General Information
Colour White
Cable Clamping Range (mm) 10 - 14
Recommended Cap Tightening Torque (Nm) 2.0 - 2.5
Ingress Protection IP68
Temperature Rating (°C) 0 to +80
Materials
Gland Body: Nylon 66
Seal: TPE (Thermoplastic Elastomer)
Washer: PVC (Polyvinyl Chloride)
Standards
ANSI/UL 514B
BS EN 60529: 1992 + A2: 2013
