The Fusebox F2007M is a white metal 7 way switch isolator consumer unit that offers a flexible versatile solution for residential installations.
Offers 7 useable ways and 100A double pole switch isolator. It accepts the latest Fusebox MCB and miniature RCBOs on its fixed busbar.
The modern curved design blends into its surroundings and the metal enclosure is painted in low smoke and fume paint ensuring compliance with the latest 18th edition wiring regulations.
Offers generous cable room with neutral and earth bars mounted on the top of the enclosure. Cable entry knockouts are available on 5 sides, top, bottom, left, right, and rear.
Tested in accordance to BS EN 61439-3. it includes comprehensive user instructions and high quality sub circuit identification labels.

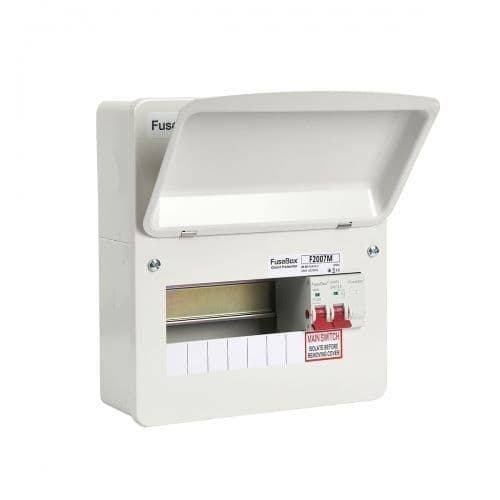

Fusebox F2007M 7 way switch isolator consumer unit
7 useable ways, 10 module enclosure
White RAL9001 all curved fully metal enclosure
Low smoke and fume paint
IP Rating: IP20XC
Fixed busbar
Removable and raised DIN rail
Rating: 230V - 240V
100A double pole main switch isolator
Accepts the latest Fusebox MCB and miniature RCBOs
Round cable entry knockouts on 5 sides, top, bottom, left, right, and rear
Generous cable room with neutral and earth bars mounted on the top of the enclosure
Supplied with tail clamp
Circuit identification labels providing clear understanding of outgoing ways
Captive screws on front cover
Standards: BS EN 61439-3
Dimensions: Height: 255mm | Width: 234mm | Depth: 110mm
