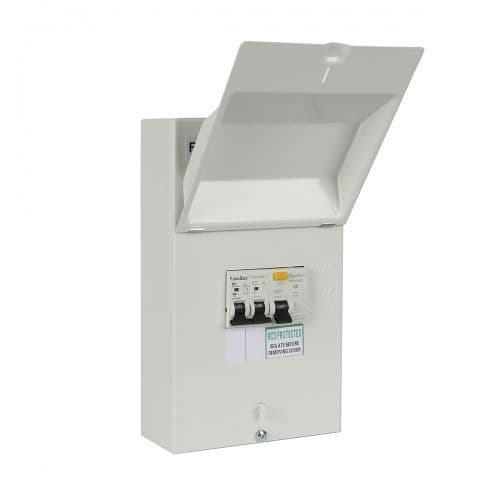

Fusebox F100GRA Pre-Populated 2 Way Garage Consumer Unit With 63A RCD Isolator & Dual MCBs

The Fusebox F100GRA is a white metal pre-populated 2 way garage consumer unit with 63A 30mA RCD isolator and 1x6A + 1x16A MCBs

The modern curved design blends into its surroundings and the metal enclosure is painted in low smoke and fume paint ensuring compliance with the latest 18th edition wiring regulations.

Offers generous cable room with neutral and earth bars mounted on the top of the enclosure. Cable entry knockouts are available on 5 sides, top, bottom, left, right, and rear.

Tested in accordance to BS EN 61439-3. it includes comprehensive user instructions and high quality sub circuit identification labels.

Fusebox F100GRA pre-populated 2 way garage consumer unit
2 useable ways, 4 module enclosure
White RAL9001 all curved fully metal enclosure
Low smoke and fume paint
IP Rating: IP20XC
Fixed busbar
Rating: 230V - 240V
63A 30mA RCD switch isolator
Supplied with 2 x 6kA SP Type B MCBs (1x6A + 1x16A)
Round cable entry knockouts
Generous cable room with neutral and earth bars mounted on the top of the enclosure
Supplied with tail clamp
Circuit identification labels providing clear understanding of outgoing ways
Captive screws on front cover
Standards: BS EN 61439-3
Dimensions: Height: 260mm | Width: 156mm | Depth: 94mm
